Portable Optical Video Measuring Instrument Automatic Multi Function

Brand Name : WM-3D

Model Number : CNC-5040AH

Certification : ISO9001

Place of Origin : Guangdong, China

MOQ : 1

Price : $15,000.00/sets

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100sets/7days

Delivery Time : 2days

Packaging Details : Automatic Portable Optical Image Thickness Video Measuring Instrument CNC Series Wooden Cases

Warranty : 1 year

Customized support : OEM, ODM

Product name : Automatic Portable Optical Image Thickness Video Measuring Instrument CNC Series

Model : CNC-5040AH

Color : White

General Use : electronices ,plastics,mold,machinery,hardware,clocks,mobile

Material : Granite

Usage : Measuring

Weight : 300KG

power supply : AC 220V/50-60Hz

type : Fully automatic

usage : Optical system

Contact Now

Automatic Portable Optical Image Thickness Video Measuring Instrument CNC Series
Products Description
Portable Optical Video Measuring Instrument Automatic Multi Function
Items
CNC-3020AH
CNC-4030AH
CNC-5040AH
Dimension(mm)(L×W×H)
700*850*1650
800*900*1650
900*1050*1650
Measuring range(mm)(X×Y×Z)
300*200*200
400*300*200
500*400*200
Measuring Accuracy(μm
3+L/200
3+L/200
3+L/200
Repeatability (μm)
3
3
3
Weight(kg)
300
380
450
Image and Measuring
CCD
Japanese SOnYCcD
Len
High definition zoomlens/Continuous magnification 0.7-5.0x
Magnification
40-230X( For reference only. With different camera and lens the magnification will be different. )
ptical scale resolution
x/Y/z axis o.0002mm ( 0.2um )
Working distance
108mm
Measurement software
Combine the 3D measurement software developed by the imported software function to improve the boundary resolution.
Driving system
X/Y/Z three-axis high performance Taiwan servo motor, double closed loop control system
Illumination
Program-controlled five-ring eight-zone surface light source,LED contour light source, coaxial light source.Different colors are
added to different products.

Main Function

1.Element measurements: multi-point measurement point, line, circle, arc, angle, ellipse, rectangle measuring points provided, automatic identification of point, line, circle, arc.

2.Element structure: the center structure, the intersection of structure, the mid-point structure, line structure, a round structure, the angle structures.

3.Preset elements: point, line, circle, arc.

4.Graphics: coordinate translation, straighten the work piece.

5.Arbitrary axis straightened, coordinate system reset.

6.graphic to enlarge, reduce graphics, graphics translation, graphic printing graphic is selected, uncheck, graphics removed.

7.Set the zoom, graphics narrow, graphic print radio is selected, deselect, graphics removed.

8,.Set the gray scale image, saturation, contrast, image saved as a BMP format.

9,A variety of edge detection mode, the computer auto

Portable Optical Video Measuring Instrument Automatic Multi Function
Portable Optical Video Measuring Instrument Automatic Multi Function
Portable Optical Video Measuring Instrument Automatic Multi Function
Our Services
Portable Optical Video Measuring Instrument Automatic Multi Function
1.Warranty within 12 months from the time of receipt 2.During this period, we will take phone and internet teaching to users with a combinative after-sale advisory service. 3.We provide life warranty services of machine for users with cost. 01.If machine failure caused by our side, you can send back the spare parts to us and the cost by our side. 02.But if needs our technician come to customer side for training, technical service is free, except ticket and accommodation. 4.Extra warranty period: We will provide to user after-sale long-life advisory service. 5.Our company has spare parts which can be provided for the users with cost. 6.We provided users with after-sales value added technical service by preferential price for life,

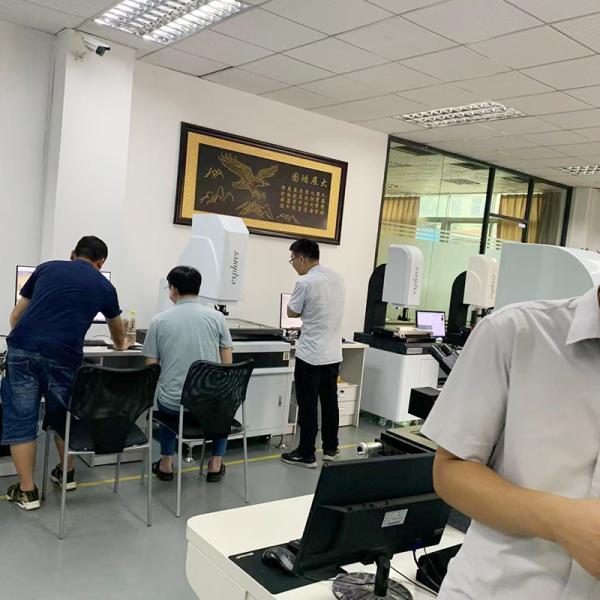

Company Information
Portable Optical Video Measuring Instrument Automatic Multi Function
Portable Optical Video Measuring Instrument Automatic Multi Function
Packaging & Shipping
Portable Optical Video Measuring Instrument Automatic Multi Function
FAQ
Portable Optical Video Measuring Instrument Automatic Multi Function

Q1:What kind of equipment do you mainly produce?

A:Hello! Our main production equipment are:

automatic image measuring instrument,manual image measuring instrument,large gantry image measuring instrument,one key measuring instrument.

Automatic vision screeningequipment,

non-standard vision detection equipment, etc.

Q2:Do you accept custom service? Can I print my logo on the machine?

A:Yes,all of our products can be customized,if you have a logo requirement, we can also customize for you.

Q3:why do you choose us?

A:1.We have focused on the measurement of products for more than 10 years,with a professional R&D team and after-sales team.

A2.It is located in Dongguan City, a world-famous manufacturing city.

A3:after-sales service for 12 months,simple problems within 48 hours todeal with timely.

Q4:what is your delivery time? What about the packing?

A:Our delivery time is 5 working days after receiving the deposit or order confirmation, and 10-20 working days for customized machines. Our packaging is wrappedand fixed with professional machine packaging film inside, and woodenbox packaging and screw fixing are used on the outside.Ensure that theproduct arrives safely without damage.

Q5:Is on-site training available?

A:can,the need for on-site training needs to confirm the specific time with

Q6:What are the payment terms?

A:T/T,L/C,Western Union,etc. Q6.What are your payment terms?

A: T/T 30% as a deposit, 70% before delivery. Before you pay the balance, we will show you the photos ofthe product and packaging.

Or 100% L/C at sight.

Q7:Can we test samples before placing an order?

A:Of course,we can test samples for free and provide you with a test report. If you have any difficulties,please contact our business manager
